AF系列产品

特征

●  铁硅合金具有分布式气隙

●  高饱和磁通密度（1.5T）

●  出色的直流偏置特性

●  良好的直流偏置特性


应用

●  服务器电源

●  不间断电源

●  开关调节器

●  光伏逆变器

●  一般工业电源输出电感

●  新能源汽车

收藏
  • 产品规格

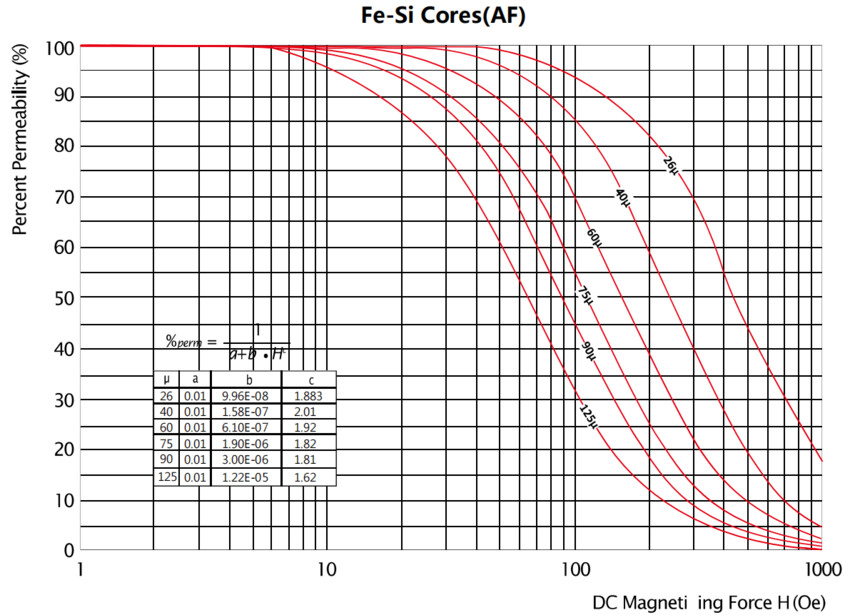

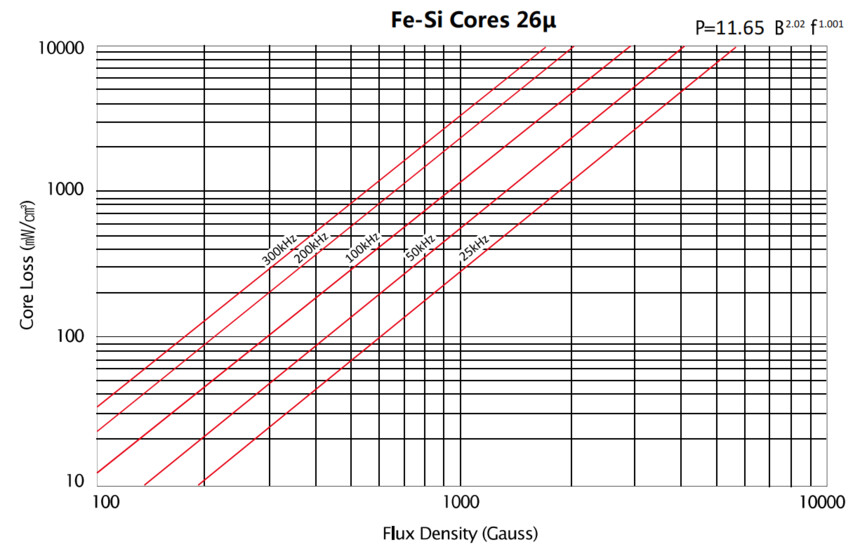

  • 性能参数
Part   Number Permeability
    （u）		AL±8%Window Area
    (Wa)		Cross Section
    （Ae）		Magnetic
    Path Length
    （Le）		Volume
    （V）		Dimensions（mm）
    OD（max）*ID（min）*HT（max）
Before coatingAfter   coating
AF035060060130.018 cm20.013 cm20.817 cm0.011 cm33.56*1.78*1.524.19*1.27*2.16
AF03512512526
AF039060060170.032 cm20.021 cm20.942 cm0.020 cm33.94*2.24*2.544.57*1.73*3.18
AF03912512535
AF046060060200.029 cm20.028 cm21.060 cm0.030 cm34.65*2.36*2.545.28*1.85*3.18
AF04612512542
AF063060060240.041 cm20.047 cm21.360 cm0.064 cm36.35*2.79*2.796.99*2.29*3.43
AF06312512550
AF066060060260.041 cm20.046 cm21.360 cm0.064 cm36.60*2.67*2.547.24*2.16*3.18
AF06612512554
AF067060060500.038 cm20.092 cm21.360 cm0.125 cm36.60*2.67*4.787.24*2.16*5.54
AF067125125103
AF078060060250.092 cm20.062 cm21.790 cm0.110 cm37.87*3.96*3.188.51*3.43*3.81
AF07812512552
AF096060060250.143 cm20.075 cm22.180 cm0.164 cm39.65*4.78*3.1810.29*4.27*3.81
AF09612512553
AF097060060320.143 cm20.095 cm22.180 cm0.206 cm39.65*4.78*3.9610.29*4.27*4.60
AF09712512566
AF102060060320.164 cm20.100 cm22.380 cm0.238 cm310.20*5.08*3.9610.80*4.57*4.60
AF10212512566
AF112060060260.272 cm20.091cm22.690 cm0.244 cm311.18*6.35*3.9611.89*5.89*4.72
AF11212512553
AF127060060270.384 cm20.114 cm23.120 cm0.356 cm312.70*7.62*4.7513.46*6.99*5.51
AF12712512556
AF140060060460.426 cm20.210 cm23.454 cm0.725 cm314.00*8.00*7.0014.76*7.37*7.76
AF14012512579
AF166060060350.713 cm20.192 cm24.110 cm0.789 cm316.64*10.16*6.3517.40*9.53*7.11
AF16612512572
AF172060060430.639 cm20.232 cm24.140 cm0.961 cm317.27*9.65*6.3518.03*9.02*7.11
AF17212512589
AF203060060321.140 cm20.226 cm25.090 cm1.150 cm320.32*12.70*6.3521.08*12.07*7.11
AF20312512568
AF208060060441.018 cm20.283 cm25.056 cm1.431 cm320.80*12.00*6.6021.62*11.39*7.38
AF20812512592
AF229060060431.410 cm20.331 cm25.670 cm1.880 cm322.86*13.97*7.6223.62*13.39*8.38
AF22912512590
AF234060060511.490 cm20.388 cm25.880 cm2.280 cm323.57*14.40*8.8924.28*13.77*9.70
AF234125125105
AF270060060751.560 cm20.654 cm26.350 cm4.150 cm326.92*14.73*11.1827.69*14.10*11.99
AF270125125157
AF270060E14060941.560 cm20.819 cm26.350 cm5.200 cm326.92*14.73*14.0027.69*14.10*15.00
AF270125E14125196
AF270060E180601201.560 cm21.010 cm26.350 cm6.430 cm326.92*14.73*18.0027.69*14.10*19.00
AF270125E18125250
AF271060A0601051.220 cm20.900 cm26.420 cm5.760 cm328.25*13.10*12.0529.05*12.47*13.00
AF271125A125219
AF300060060971.560 cm20.886 cm26.877 cm6.077 cm330.00*14.70*12.0030.83*14.10*13.00
AF300125125202
AF320060060951.610 cm21.040 cm27.140 cm7.430 cm332.00*14.70*11.0033.83*14.10*11.91
AF320125125200
AF330060060612.930 cm20.672 cm28.150 cm5.480 cm333.02*19.94*10.6733.83*19.30*11.61
AF330125125127
AF330060E14060802.930 cm20.874 cm28.150 cm7.120 cm333.02*19.94*14.0033.83*19.30*15.00
AF330125E14125167
AF330060E180601022.930 cm21.100 cm28.150 cm8.980 cm333.02*19.94*18.0033.83*19.30*19.00
AF330125E18125214
AF331060060832.380 cm20.882 cm27.075 cm6.238 cm333.27*18.00*11.6734.08*17.36*12.61
AF331125125173
AF340060060701.500 cm20.670 cm26.680 cm4.470 cm334.00*14.20*7.2034.80*13.60*8.00
AF340125125147
AF343060060384.000 cm20.454 cm28.950 cm4.060 cm334.29*23.37*8.8935.10*22.56*9.83
AF34312512579
AF355060E160601491.887 cm21.523 cm27.746 cm11.760 cm335.39*16.35*16.0036.70*15.50*17.10
AF355125E16060310
AF358060060563.640 cm20.678 cm28.980 cm6.090 cm335.81*22.35*10.4636.70*21.50*11.28
AF358125125117
AF399060060882.924 cm21.085 cm29.107 cm9.881 cm339.80*20.00*11.3040.50*19.30*12.00
AF399125125183
AF399060-M0601012.924 cm21.055 cm29.107 cm9.608 cm339.80*20.00*11.3040.50*19.30*12.00
AF399125-M125210
AF400060060814.270 cm21.070 cm29.850 cm10.500 cm339.88*24.13*14.4840.69*23.32*15.37
AF400125125168
AF4010600601223.550 cm21.540 cm29.510 cm15.043 cm340.13*22.08*17.0040.94*21.27*17.89
AF401125125254
AF4200600601043.047 cm21.300 cm29.442 cm12.275 cm342.20*20.50*12.1043.00*19.70*13.00
AF420125125216
AF4550600601252.687 cm21.639 cm29.898 cm16.223 cm345.50*19.50*13.0046.50*18.50*14.00
AF455125125260
AF455060-M0601352.687 cm21.510 cm29.898 cm14.946 cm345.50*19.50*13.0046.50*18.50*14.00
AF455125-M125281
AF4660600601552.268 cm22.098 cm210.132 cm21.258 cm346.74*17.80*14.2047.50*17.00*15.00
AF466125125323
AF466060-M0601502.268 cm21.850 cm210.132 cm18.744 cm346.74*17.80*14.2047.50*17.00*15.00
AF466125-M125312
AF4670600601354.270 cm21.990 cm210.743 cm21.400 cm346.74*24.13*18.0048.13*23.32*18.92
AF467125125281
AF468060060866.110 cm21.340 cm211.620 cm15.600 cm346.74*28.70*15.2048.13*27.89*16.13
AF468125125178
AF4950600601852.985 cm22.161 cm210.958 cm23.680 cm349.50*20.30*14.8050.20*19.50*15.50
AF495125125385
AF508060060737.520 cm21.250 cm212.733 cm15.900 cm350.80*31.75*13.5052.19*30.94*14.35
AF508125125152
AF5710600601385.140 cm22.290 cm212.506 cm28.600 cm357.15*26.39*15.2058.54*25.58*16.13
AF571125125287
AF572060060759.480 cm21.440 cm214.296 cm20.700 cm357.15*35.56*14.0058.54*34.75*14.86
AF572125125156
AF6100600601927.730 cm23.675 cm214.370 cm52.810 cm362.00*32.60*25.0063.59*31.37*26.26
AF610125125400
AF6800600601439.452 cm23.140 cm215.800 cm49.700 cm368.00*35.99*19.9969.92*34.67*21.41
AF680125125298
AF74006006020615.300 cm24.940 cm218.400 cm90.900 cm374.10*45.30*35.0075.70*44.10*36.20
AF740125125429
AF7770600606818.100 cm21.770 cm219.612 cm34.800 cm377.80*49.23*12.7079.44*47.96*13.97
AF777125125142
AF7780600608518.100 cm22.220 cm219.612 cm43.500 cm377.80*49.23*15.9079.44*47.96*17.15
AF778125125178
AF778060E31.806017018.100 cm24.439 cm219.612 cm86.999 cm377.80*49.23*31.8079.44*47.96*33.10
AF778125E31.8125356
AF8880600605732.900 cm21.830 cm224.000 cm43.900 cm388.85*66.01*15.9390.50*64.74*17.20
AF888125125119
AF101606006011224.400 cm23.520 cm224.271 cm85.500 cm3101.60*57.15*16.51103.37*55.75*17.78
AF1016125125228
AF10170600609224.400 cm22.970 cm224.271 cm72.100 cm3101.60*57.15*13.59103.37*55.75*14.86
AF1017125125192
备注：具体规格材质、导磁率可致电我司。
